Fujitsu Fi-8270 Flatbed Scanner

Fujitsu 8270 features:

  • The Fujitsu Fi-8270 Flatbed Scanner - Up to 70PPM/140IPM Duplex at 200/300DPI
  • Color/B&W/Scanning, Up to 600DPI Optical Resolution
  • Document Feeder Capacity: Up to 100 sheets, Plus Hard Card Scanning
  • Personal Desktop Scanner, PaperStream IP (TWAIN/ISIS), PaperStream Capture
  • Up to Legal Size Document Scanning
  • Windows, MAC OS and Linux
  • USB 3.2 and Wired LAN 10BASE-T, 100BASE-TX, 1000BASE-T (connector shape: type RJ-45)
  • Daily Duty Cycle 10,000 Pages
  • 1 Year limited Manufacture Warranty
Processing...

Fujitsu Fi-8270 Flatbed Scanner

Code: FUJ-Fi-8270

Our Price - $2,000.00


Qty

Product Details

Specification details

Model name fi-8290 fi-8270
Model name FI-8290 FI-8270
Base price 330,000 yen (363,000 yen including tax) 210,000 yen (231,000 yen including tax)
Reading speed
(A4 portrait)
(Note 1)
Color / gray scale (Note 2)
Binary black and white
(Note 3)
ADF One side: 90 sheets / minute, both sides: 180 sides / minute (200 / 300dpi) One side: 70 sheets / minute, both sides: 140 sides / minute (200 / 300dpi)
Flat bed One side: 1.7 seconds / sheet (200 / 300dpi) One side: 1.7 seconds / sheet (200 / 300dpi)
Original loading capacity (Note 4) 100 sheets (A4: 80g / m 2 ) (additional possible)
Daily reading guideline (Note 5) ~ 13,000 sheets ~ 10,000 sheets
Scanner type Automatic paper feed method (ADF) + manual feed / single feed + flat bed
Scanning mode Single-sided / double-sided, color / grayscale / binary black-and-white (binary)
Image sensor ADF: Color CIS x 2 (front and back), Flat bed: Color CCD x 1
light source ADF: RGB LED (3 color light source switching) x 2 (front and back), flat bed: white LED
Optical resolution 600dpi
Output resolution (Note 6) 50-600dpi (can be specified for each 1dpi), 1200dpi (with driver)
Multi-value level Color: 24bit, grayscale: 8bit, binary black and white: 1bit
Original background color ADF: White or black (switchable)
Flat bed: White (black can be changed by using the optional black document holder pad)
Reading range ADF Maximum: 216 x 355.6 mm (8.5 x 14 in.) (Note 7)
Minimum: 48 x 50 mm
(when reading a long length: up to 6,096 mm (Note 8) (Note 9) )
Flat bed Maximum: 216 x 297 mm
Original thickness 20-465g / m 2, 128-209g / m 2 for A8 and below
Card transport (Note 10) Without embossing: Thickness 1.4 mm or less, continuous feed up to 10 sheets (0.76 mm or less), 5 sheets (1.4 mm or less) With
embossing: Thickness 1.4 mm or less, continuous feed not possible
Multifeed detection Possible (by ultrasonic multi-feed sensor)
Original protection function Sound detection (iSOP), image monitoring
Dropout color (Note 11) Custom (multicolor), red, green, blue, white, chromatic, none
Interface USB USB3.2 Gen1 / USB3.0 / USB2.0 / USB1.1 (connector shape: type B)
Wired LAN 10BASE-T, 100BASE-TX, 1000BASE-T (connector shape: type RJ-45)
Voltage / voltage range AC100V ± 10%
power consumption 30W or less (sleep: 2.0W or less) 28W or less (sleep: 2.0W or less)
Operating environment Temperature: 5 to 35 ° C, Humidity: 15 to 80%

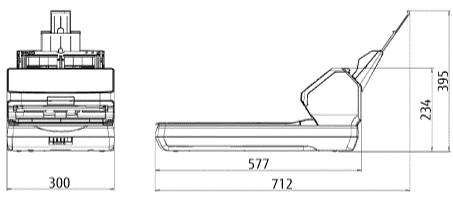

External dimensions
Width x Depth x Height (Note 12)
300 x 577 x 234 mm
mass 8.8kg
Supported OS Windows Windows 7 (32bit / 64bit)
Windows 8.1 (32bit / 64bit)
Windows 10 (32bit / 64bit) (Note 13)
Windows 11 (64bit) (Note 13)
Windows Server 2008 R2 (64bit)
Windows Server 2012 (64bit)
Windows Server 2012 R2 (64bit)
Windows Server 2016 (64bit)
Windows Server 2019 (64bit)
Windows Server 2022 (64bit)
Linux Ubuntu 16.04 LTS (Desktop, 32bit / 64bit)
Ubuntu 18.04 LTS (Desktop, 32bit / 64bit)
Ubuntu 20.04 LTS (Desktop, 64bit)
Driver software
(Note 14)
PaperStream IP (TWAIN (Note 15) / ISIS ™ Driver)
PaperStream Capture
PaperStream ClickScan
PaperStream NX Manager
2D Barcode for PaperStream (Note 16)
Scanner Central Admin
Image Scanner Driver for Linux (Note 16)
Environmentally friendly Green Purchasing Law, International Energy Star Program, RoHS Directive Compliant, Eco Mark Products

  • (Note 1) Software processing time such as data transfer time is added to the actual reading time.
  • (Note 2) When compressed with JPEG.
  • (Note 3) When compressed with TIFF / CCITT Group 4.
  • (Note 4) The maximum number of sheets varies depending on the thickness of the original.
  • (Note 5) The values ​​are guidelines and are calculated from our estimated usage time and reading speed. We do not guarantee the number of readings and durability under the customer's usage conditions.
  • (Note 6) The maximum resolution that can be specified may differ depending on the length of the scanned document.
  • (Note 7) Documents up to A3 (one side) can be read by manual feed / single feed mode or by using A3 carrier sheet.
  • (Note 8) Documents longer than A4 size can be read in the feed direction.
  • (Note 9) The resolution for each paper length is as follows.
    6,096 mm or less (200 dpi or less), 5,461 mm or less (300 dpi or less), 4,064 mm or less (400 dpi or less), 2,700 mm or less (600 dpi or less), 863 mm or less (1200 dpi).
    <When linking with PaperStream NX Manager> * 401dpi and above are not supported
    • When reading on both sides: 863.6 mm (300 dpi or less), 355.6 mm (400 dpi or less)
    • When reading on one side: 1828.8 mm (300 dpi or less), 355.6 mm (400 dpi or less)
  • (Note 10) ISO7810 compliant card (shape: 85.6 x 53.98 mm).
  • (Note 11) Scans the original except for the specified color. (Only in binary black and white / grayscale mode)
  • (Note 12) Dimensions of the main body. Does not include ADF paper chute, stacker and protrusions.
  • (Note 13) ARM-based Windows PCs are not subject to the operating environment.
  • (Note 14) To apply the product download or update, you need an environment where you can connect to the Internet. It is recommended to connect to the Internet and apply the latest version when using it.
  • (Note 15) TWAIN comes with a 32-bit version and a 64-bit version.
  • (Note 16) Please download from the driver download site.
